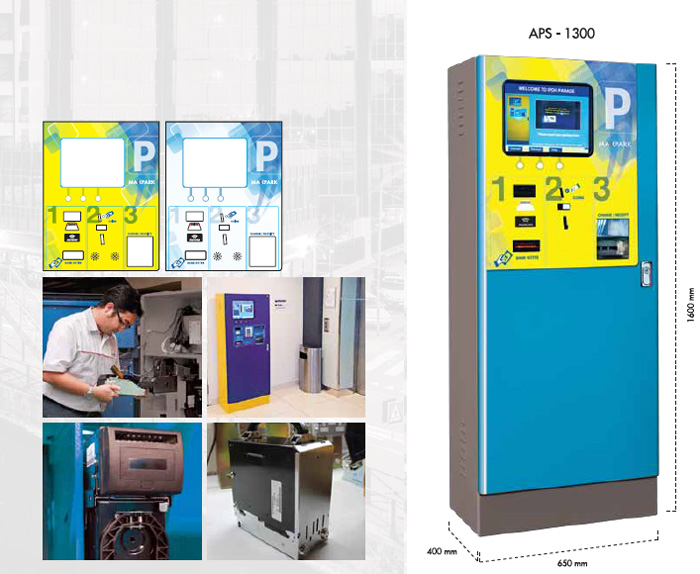

AUTOPAY STATION (APS)

The APS is a major component that provides visitors an access point to make payment for their parking tickets. Upon inserting the barcode ticket, the APS will automatically calculate the parking charges based on time in and time out. Different types of tariff rates can be set at the CMS depending on the management decision. The parking charges will be displayed at the APS screen, the visitor will then make payment in Notes and/or Coins. The APS Notes and Coin Acceptor and Dispenser unit are well known quality products imported from Canada and Germany. The APS is able to dispense change in Notes and/or Coins, and a payment receipt can be printed out once the visitor presses the receipt button. The APS is also able to collect payment from all Season Pass Holders. There is an option to integrate a camera in the APS, once the visitor inserts the parking ticket to make payment, the APS system will capture a photo and tag it to the ticket serial number. The APS has an intercom system that allows the visitor to communicate with the parking office in the event of any error occurring at the APS machine.

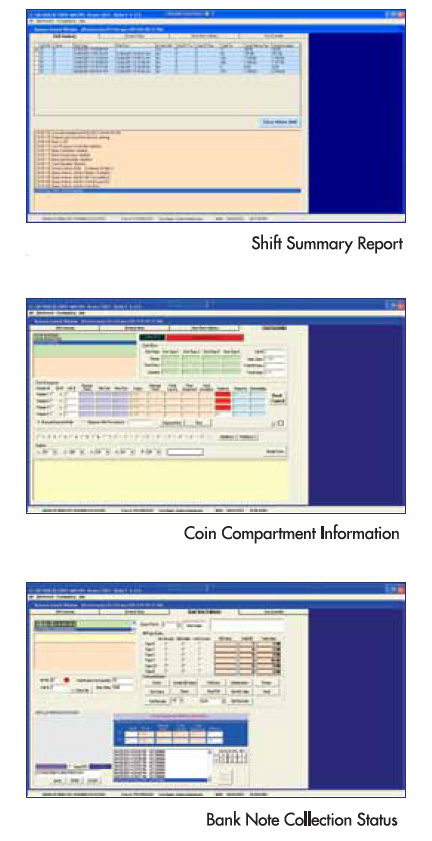

All APS units are connected to the CMS Back Office Management System via a Local Area Network cable. All APS units are usually located at the lobby and car park lifts areas for easy access to the visitors.



FEATURES

• Automatic parking fee computation and collection
• User-friendly payment guide
• Ergonomic casing design
• Modular hardware layout
• Compact internal mounting frame
• Attractive & informative front panel
• Large LCD colour display with advertising space
• Multimedia with voice and sound
• Flexible software development and configuration
• Fast and stringent note recognition
• Four way bank note recognition
• Big capacity and lockable note and coin cassette
• Large paper roll receipt printing capacity
• Contactless barcode scanning technology
• Touchscreen function for operation & service
• Stringent security access control

SPECIFICATIONS

Door Lock	Vandal resistant multi-point lock set with concealed hinges with opening/ unplug monitoring alarm
Relative Humidity	10% – 90% (non-condensing)
Voltage	240VAC
Frequency	50 – 60Hz
Power Consumption	200W
Dimensions (mm)	400 (d) x 650 (w)x 1600 (h)
Weight	250kg
Finishing	Outdoor epoxy powder coating
Operating Temperature	-10°C – 50°C

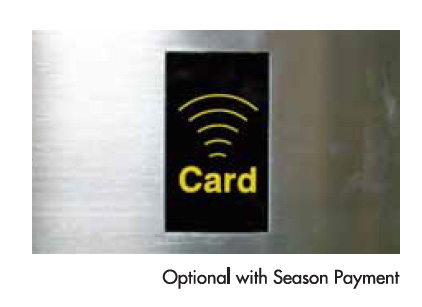

SEASON CARD PAYMENT OPTION
