CENTRAL PAYMENT SYSTEM (CPS)

The CPS functions as a payment centre or a multiple sub payment centre that can be linked to the main CMS and Season Pass System. It is usually located at the Exit Payment Booth, Hotel Reception and Commercial Building Reception Area. It can also function as a portable unit to be located in Hotel Ballroom or Function Room which is convenient for guests to make payment during peak period.

FEATURES

• Tariff calculation
• Accept payment from guest
• Validate parking ticket
• Setup of Multiple Discount Rates ie. FOC, discount, hourly rates, flat rate, replacement of lost tickets
• Full suite of back office management reports
• Able to link to Central Monitoring System (CMS)
• Able to link to Season Pass System

SPECIFICATIONS

TFT LCD (nits)	400 nits
Touch	5 Wire resistive or SAW
Tilt Angle	15°-80°
Power Input	External adapter 12VDC 90W, 4-pin connector with lock
Weight (kg)	6.5kg

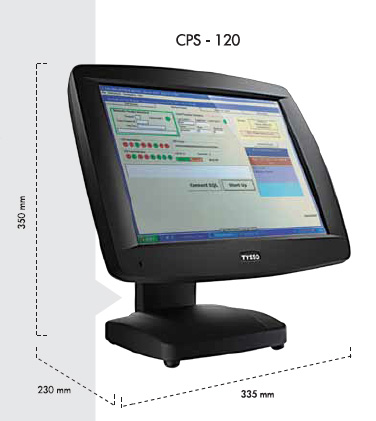

Dimensions (mm)	230 (d) x 335 (w) x 350 (h)
Operating Temp.	0°C – 40°C
EMC & Safely	FCC / CE / WEEE / RoHS
OS Support	POS ready, XP Pro, Vista, Linux & Windows 7 MSR, l-Button,
Option	programmable keyboard & rear display



TYPES OF REPORTS

• Day End Report
• Shift Summary Report
• Job Summary Report
• Payment Summary Report
• Payment Listing Report
• Event Log Report
• Exceptional Report
