Dual Cone Ceiling Speaker

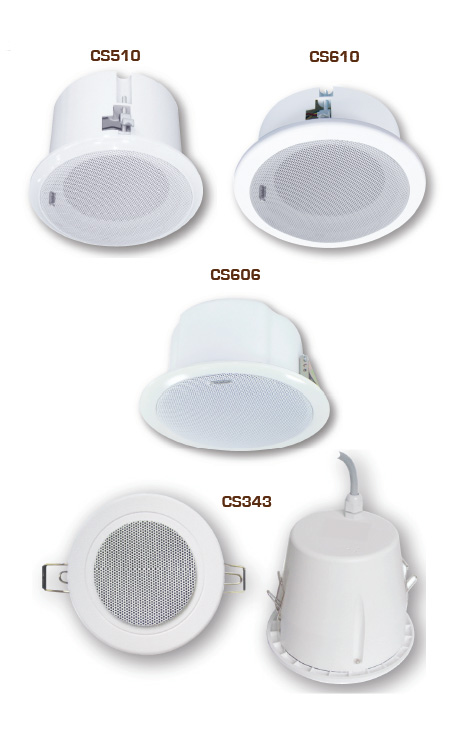

CS510 / CS610 : DUAL CONE CEILING SPEAKER W ABS ENCLOSURE
Available in 5” and 6” of driver size complete with matching transformer of three
tappings ; 1, 3 or 6W. Back enclosure are supplied as integral part of the speakers
made from quality ABS plastic. Installation is made easy with its screw mounting
mechanism.
Packing information
- CS510 : 850 (W) x 385 (H) x 240 (D) mm
: 15 kg
: 20 uts per carton - CS610 : 685 (W) x 475 (H) x 340 (D) mm
: 19.6 kg
: 18 uts per carton
CS606 : DUAL CONE CEILING SPEAKER W METAL ENCLOSURE
Available in 6” dual cone speaker with back metal enclosure, grill and baffle and
multi tap matching transformer of 1, 3 and 6W 100V line. This model shall be
suitable for installations that demand fire resistant version of dome.
Packing information
- CS606 : 420 (W) x 220 (H) x 345 (D) mm
: 6.5 kg
: 6 uts per carton
CS343 : WEATHERPROOF CEILING SPEAKER
CS343 is driven by a 4” dual cone speaker with built in matching transformer of dual
taps of 3 and 6W 100V line.
Made of quality ABS enclosure and aluminum grille, it is suitable for high humidity
areas, such as bathrooms and salty environment. Though compact in size, it delivers
satisfactory sound reproduction with high SPL level, good for listening pleasure as
well as paging clarity.
Packing information
- CS343 : 550 (W) x 180 (H) x 465 (D) mm
: 9.5 kg
: 9 uts per carton
Technical Specifications
| CS510 | CS610 | CS606 | CS343 | |
| SPEAKER | ||||
| Power rating | 6W 100V line nominal (max 10W) | |||
| Diameter | 5” (125 mm) | 6” (150 mm) | 4” (100 mm) | |
| Cone type | Dual cone | |||
| Impedance (Ohm) | 8 | |||
| Freq response (+/- 5dB) | 150 ~ 19 KHz | 120 ~ 19 KHz | 150 ~ 16 KHz | 150 ~ 18 KHz |
| SPL @ 1W / m (+/- 3dB) 1 KHz | 93 dB | 92 dB | 91 dB | 90 dB |
| Magnet weight | 3 oz | 5.3 oz | 2 oz | 3 oz |
| TRANSFORMER | ||||
| Tapping (100V line) | 1 / 3 / 6W | 1.5 / 3 / 6W | 3 / 6W | |
| Primary impedance (Ohm) | 10 K / 3.3 K / 1.6 K | 6.7 K / 3.3 K / 1.6 K | 3.3K / 1.67 K | |
| Secondary impedance (Ohm) | 8 | |||
| PHYSICAL | ||||
| Grille / enclosure | White metal / ABS white | White metal | Aluminum / ABS | |
| Cutting hole dim | 140mm | 175mm | 165mm | 120mm |
| Overall size (dia x height) | 177 x 130 mm | 230 x 102 mm | 200 x 100 mm | 140 x 130 mm |
| Weight | 715g | 785 g | 950 g | 900 g |
| Colour | White | |||
