HIK Vision DS-2CE16D0T-IR HD1080P IR Bullet Camera
Key features
• 2 Mega Pixel High performance CMOS
• Analog HD Ouput, up to 1080p resolution
• True Day/Night, Smart IR
• DNR, Smart IR
• up to 20m IR distance
• IP66 weatherproof
| DS-2CE16D0T-IR | ||
|---|---|---|
| Camera | ||
| Image Sensor | 2MP CMOS Image Sensor | |
| Signal System | PAL / NTSC | |
| Effective Pixels | 1920(H)*1080(V) | |
| Min. Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR | |
| Shutter speed | 1 / 25(1 / 30) s to 1 / 50,000 s | |
| Lens | 2.8mm, 3.6mm, 6mm optional | |
| Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm) | ||
| Lens Mount | M12 | |
| Day & Night | ICR | |
| Angel Adjustment | Pan: 0 – 360°, Tilt: 0 – 180°, Rotation: 0 – 360° | |
| Synchronization | Internal synchronization | |
| Video Frame Rate | 1080p@25fps/ 1080p@30fps | |
| HD Video Output | 1 Analog HD output | |
| S/N Ratio | More than 62dB | |
| General | ||
| Working Temperature/ Humidity |
-40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply | 12 VDC±15% | |
| Power Consumption | Max. 4W | |
| Weather Proof Ratings | IP66 | |
| IR Range | Up to 20m | |

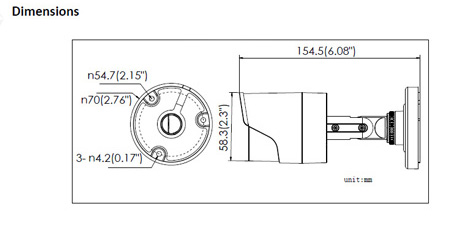

| Dimensions | Φ70×149.5mm (Φ2.76”×5.89”) | |
| Weight | 400 g | |
