VisionTec Weather-proof HDCVI IR-Bullet Camera VS-CVI-B1100R
Features
- 1/2.9″ 1Megapixel CMOS
- 25/30fps@720P
- High speed, long distance real-time transmission
- Day/Night(ICR), AWB, AGC, BLC, 2D-DNR
- 6mm fixed lens (3.6mm optional)
- Max. IR LEDs length 20m, Smart IR
- IP66, DC12V
Specifications
Model | VS-CVI-B1100R | |
---|---|---|
Camera | ||
Image Sensor | 1/2.9″ 1Megapixel CMOS | |
Effective Pixels | 1280(H)×720(V) | |
Electronic Shutter | 1/50s~1/100,000s | |
Video Frame Rate | 25fps@720P | |
Synchronization | Internal | |
Mini. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on | |
Video Output | 1-channel BNC HDCVI high definition video output | |
Camera Features | ||
Max. IR LEDs Length | 20m, Smart IR | |
Day/Night | Auto(ICR) / Color / B/W | |
Noise Reduction | 2D | |
Lens | ||
Focal Length | 6mm fixed lens (3.6mmoptional) | |
Mount Type | M12 | |
General | ||
Power Supply | DC12V±10% | |
Power Consumption | Max 2W | |
Working Environment | -30°C~+60°C / Less than 95%RH (no condensation) | |
Transmission Distance | Over 500m via 75-3 coaxial cable | |
Ingress Protection | IP66 | |

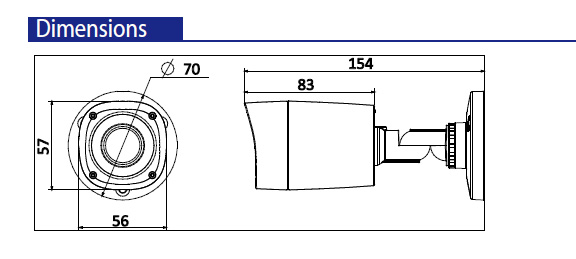

Dimensions(W×D×H) | Ø70mm × 154mm | |
Weight | 0.2Kg |
