VisionTec Weather-proof HDCVI IR-Bullet Camera VS-CVI-B1200RMP

Features

  • 1/2.7″ 2Megapixel CMOS
  • 25/30fps@1080P
  • High speed, long distance real-time transmission
  • Day/Night(ICR), AWB, AGC, BLC, 2D-DNR
  • 3.6mm fixed lens (6mm optional)
  • Max. IR LEDs length 20m, Smart IR
  • IP67, DC12V



Specifications

Model VS-CVI-B1200RMP
Camera
Image Sensor 1/2.7″ 2Megapixel CMOS
Effective Pixels 1930(H)×1088(V)
Electronic Shutter 1/50s~1/100,000s
Video Frame Rate 25fps@1080P
Synchronization Internal
Mini. Illumination 0.01Lux@F1.2(AGC ON), 0Lux IR on
Video Output 1-channel BNC HDCVI high definition video output
Camera Features
Max. IR LEDs Length 20m, Smart IR
Day/Night Auto(ICR) / Color / B/W
Noise Reduction 2D
Lens
Focal Length 3.6mm fixed lens (6mm optional)
Angle of View H: 89.9º(59.4º)
Mount Type M12
General
Power Supply DC12V±20%
Power Consumption Max 3.5W
Working Environment -30°C~+60°C / Less than 95%RH (no condensation)
Transmission Distance Over 500m via 75-3 coaxial cable
Ingress Protection IP67

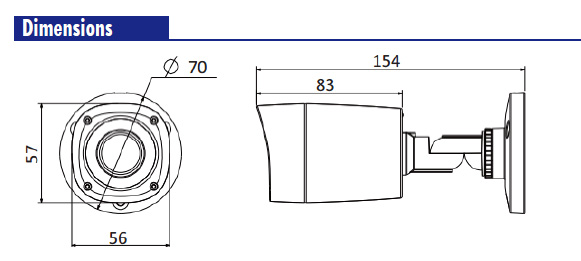

Dimensions(W×D×H) Ø70mm×154mm
Weight 0.3kg
Material Metal



VS-CVI-B1200RMP_01
