Floor Stand Rack

A. 19″ Floor Stand Rack

Q-STRUCTURE

– Nine-folded profile welded frame
– Static load up to 1,500kg
– “Hexagon” perforated design for front and rear door to maximize airflow by 200%
– Dual Open rear door with “Heaxagon” perforated design
– Mounting profile thickness 1.5mm
– Exterior door hinge enable front door to be wide-open up to 180 degrees
– Advanced moon-shaped lock for front & rear door. Master key provided (Optional)
– Comes with 13Amp Power Point Socket
– Comes with 40sets M6 caged nuts & screw, castor wheels with front braking system, 4 x ventilation fan, 2 x equipment tray, side vertical metal cable management panel
– Comply with standard ANS/EIA RS-310-D, IEC297-2 , DIN41491, PART 1, DIN41491 Standard

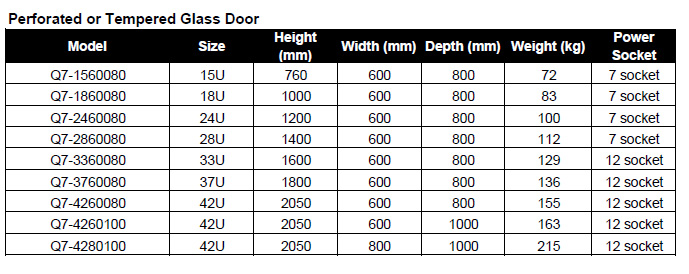

B. 19″ Floor Stand Rack (Perforated & Tempered Glass Door)

Q-RACK

– Welded steel frame with high epoxy powder coated
– “Hexagon” designed perforated front and rear door to maximize the reduction thermal heat and airflow by 200%
– Rear door tailored wide open to save space and allow easy installation
– Exterior door hinge enable front door to be wide-open up to 180 degrees
– Advanced moon-shaped lock for front & rear door. Master key provided(Optional)
– Comes with 13Amp Power Point Socket
– Comes with 40sets M6 caged nuts & screw, castor wheels with front braking system, 4 x ventilation fan, 2 x equipment tray
– Comply with standard ANS/EIA RS-310-D, IEC297-2 , DIN41491, PART 1, DIN41491, PART 7, ETSI Standard



C. 19″ Wall Mount Cabinet

Q-RACK

– Welded steel frame with high epoxy powder coated
– Tempered glass front door
– Exterior door hinge enable front door to be wide-open up to 180 degrees
– Removable side panels for easy installation and maintenance
– Cable entry from top and bottom panel with knock-out plate
– Comes with 13Amp Power Point Socket
– Comes with 20sets M6 caged nuts & screw
– Comply with ANS/EIA RS-310-D, IEC297-2, DIN41497 PART 1, DIN41494 PART 7, GB/T3047.2-92 Standard

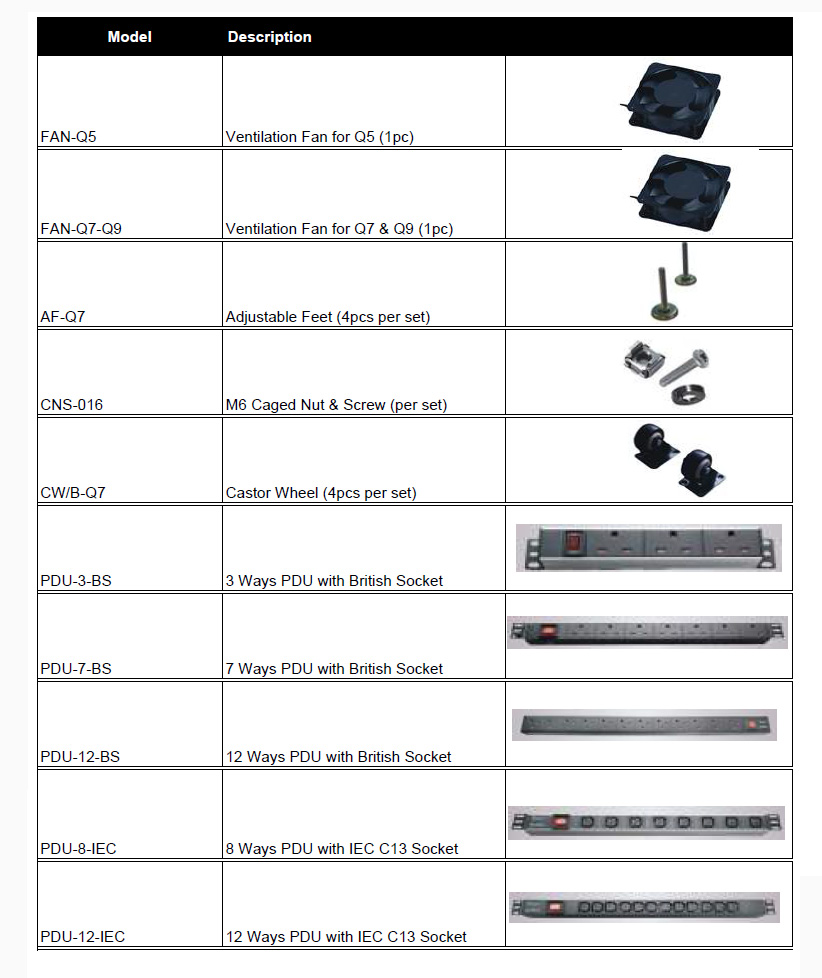

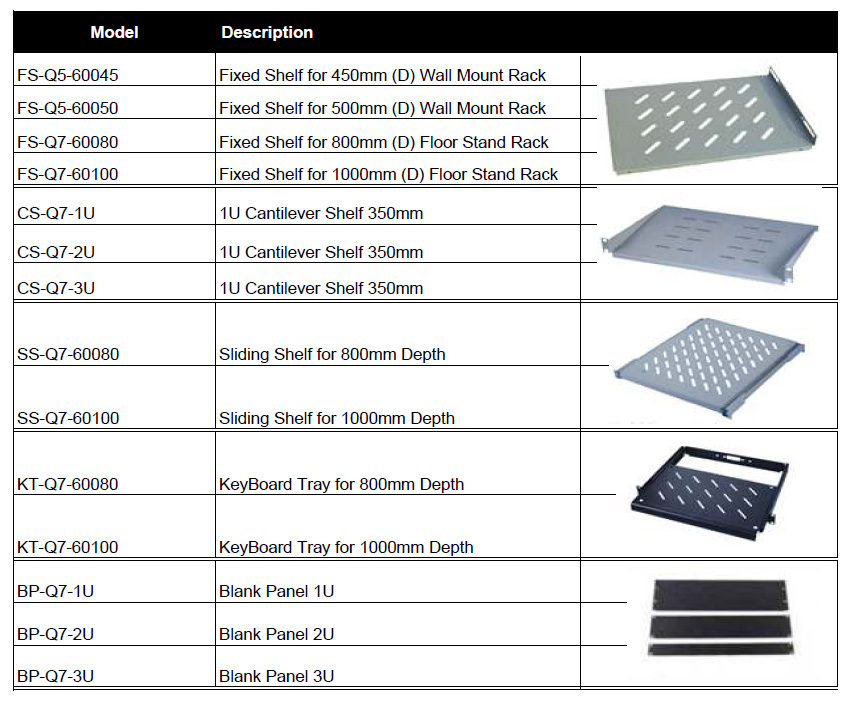

D. Optional Accessories
