Sony SNC-CH210

Sony SNC-CH210

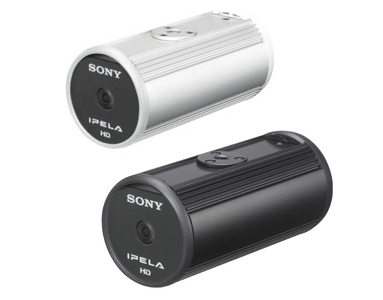

Sony is pleased to introduce a powerful addition to its network HD camera lineup, the SNC-CH210/B and SNC-CH210/S. Supporting H.264/MPEG-4/JPEG compression formats, these cameras deliver excellent picture quality in 1080p HD resolutions at 15 frames per second (fps), 720p HD resolutions at 30 fps and 3 megapixel resolutions at 12 fsp (JPEG). Thanks to its ultra compact and highly stylish cosmetic design, the SNC-CH210/B and SNC-CH210/S are ideal choice for most demanding HD video surveillance applications in retail, hotel, restaurant, education and corporate market.

  • 1080p HD Resolution Picture Quality
  • 3 Megapixel (2048 x 1536) Maximum Resolution
  • Compact and Stylish Design
  • Three Codecs – H.264, MPEG-4, JPEG
  • Dual Streaming Capability
  • The “Exmor” CMOS Sensor
  • Free Software ‘RealShot Manager Lite’
  • Intelligent Motion Detection
  • Analog Video Output
  • Power over Ethernet
  • Stream Squared Function
  • ONVIF conformance (open network video interface forum)
  • *Mounting bracket is not a supplied accessory.



Sony SNC-CH210
Generation / Series G5 / X Series
Video compression format JPEG/MPEG-4/H.264
Codec streaming capability Dual streaming(Any combination with JPEG/MPEG-4/H.264, including multiple streams of the same format)
Video format (*1) Full HD resolution 1080
Maximum resolution (*2) 2048 x 1536(3 Mega)
Ingress protection No
IR illuminators No
Horizontal viewing angle 88°
Optical zoom ratio Fixed focal lens
Focal length f=3.3 mm
Lens mount Built-in
Imager 1/2.8-type progressive scan Exmor CMOS Sensor
Minimum illumination 2.0 lx (AGC 38 dB/50 IRE [IP])
Maximum frame rate (*3) 30 fps H.264/MPEG-4/ JPEG at 1280 x 720; 15 fps H.264/MPEG-4/JPEG at 1920 x 1080
Day/Night Electrical D/N
Wide-D Visibility Enhancer (VE) No
Noise reduction Yes
Card slot(s) No
Wireless capability No
Composite video output Yes
DEPA (Intelligence) Yes
Power requirement PoE (Class 1)
Power consumption 2.4 W max.
Dimensions ø44 x 93 mm(1 3/4 x 3 3/4 inches)
