VisionTec Weather-proof IR HDCVI Mini Dome Camera VS-CVI-D2120MP
Features
- 1/3″ 1.4Megapixel CMOS
- 25/30/50/60fps@720P
- High speed, long distance real-time transmission
- HD and standard definition switchable
- OSD Menu, control over coaxial cable
- Day/Night(ICR), AWB, AGC, BLC, 3D-DNR,
- 3.6mm fixed lens (2.8mm, 6mm, 8mm optional)
- Max. IR LEDs length 20m, Smart IR
- IP66, DC12V
Specifications
| Model | VS-CVI-D2120MP | |
|---|---|---|
| Camera | ||
| Image Sensor | 1/3″ 1.4Megapixel CMOS | |
| Effective Pixels | 1305(H)×1049(V) | |
| Electronic Shutter | 1/3s~1/100,000s | |
| Video Frame Rate | 25/50fps@720P | |
| Synchronization | Internal | |
| Mini. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on | |
| Video Output | 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) |
|
| Camera Features | ||
| Max. IR LEDs Length | 20m, Smart IR | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Noise Reduction | 2D/3D | |
| OSD Menu | Support | |
| Lens | ||
| Focal Length | 3.6mm (2.8mm, 6mm, 8mm optional) | |
| Angle of View | H: 70º(89º/46.5º/35º) | |
| Mount Type | M12 | |
| General | ||
| Power Supply | DC12V±10% | |
| Power Consumption | Max 3.3W | |
| Working Environment | -30°C~+60°C / Less than 95%RH (no condensation) | |
| Transmission Distance | Over 500m via 75-3 coaxial cable | |
| Ingress Protection | IP66 | |

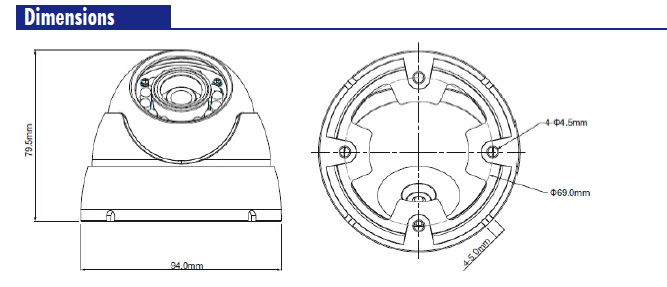

| Dimensions(W×D×H) | Φ94.0mm×79.5mm | |
| Weight | 0.35kg | |
